110V HIGH VACUUM PUMPS

OUR  RELIABLE,  ROTARY VANE TYPE, LOW COST TWO-STAGE HIGH VACUUM PUMP  OPERATES QUIETLY. PLEASE CONTACT US IF YOU ARE INTERESTED IN A 5CFM OR  LARGER PUMP.  ALL PUMPS ARE ALSO AVAILABLE IN 220V, CALL US FOR  DETAILS.


Specifications:


Free Air Displacement:         85 liters per minute (3 cubic Feet per Minute)

Ultimate Vacuum:                  25 microns/laboratory conditions

Pump Speed:                            1725 RPM

Motor:                                        1/2 HP 110V, 60Hz

Oil Capacity:                             27oz. (785cc)

Operating Temperature:      30º F to 170ºF

Intake Port:                              3/8” OD for 3/8” ID Tubing

Weight:                                      30 lbs.

Dimensions:                             11” H x 14” L x 5 ¼” W (27.5cm x 35CM x 12.5cm)

Decibel Level:                          70 Decibels


THE  LAV-3 MODEL IS ALSO AVAILABLE WITH A 2.5" DIAL, 0 TO -30" Hg BOURDON  TYPE STEEL-CASE VACUUM GAUGE SECURELY MOUNTED TO THE INTAKE.


PRODUCT NUMBER:
LAV-3 (3CFM)

LAV-3/G (3CFM WITH GAUGE)


If you require a higher capacity pump ask us about our 5, 7 and 10 CFM pumps which are also available in 110V, *NOTE: the 7 and 10 CFM pumps have a 1/2" hose barb intake fitting

PRODUCT NUMBER:

LAV-5 (5CFM)

LAV-5/G (5CFM WITH GAUGE)

LAV-7 (7CFM)

LAV-7/G (7CFM WITH GAUGE)

LAV-10 (10CFM)

LAV-10/G (10CFM WITH GAUGE)


TO PURCHASE REPLACEMENT OIL, CHECK WITH THE DEALER WHERE YOU PURCHASED THE  PUMP OR CONTACT US AND WE CAN REFER YOU TO YOUR NEAREST DEALER.



Click Here for the sell sheet download page

220v HIGH VACUUM PUMPS

THE 220V VACUUM PUMPS HAVE THE SAME SPECIFICATIONS AS THE 110V VACUUM PUMPS ABOVE WITH THE FOLLOWING DIFFERENCE:

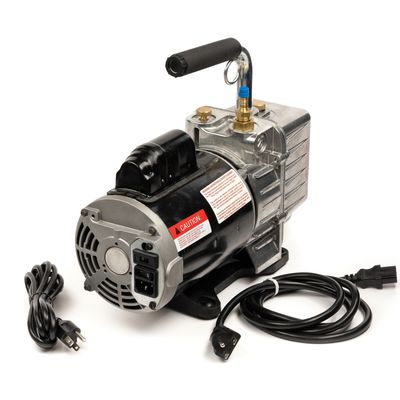

They are Dual Voltage Dual Cycle (110V/60Hz and 220V/50Hz) and come equipped with both US 110V and 220V cords that plug into the back of the motor and a switch to easily switch between voltages.


PRODUCT NUMBERS:

LAV-3/220 (3CFM, DUAL VOLTAGE)

LAV-3/220/G (3CFM, DUAL VOLTAGE WITH GAUGE)

LAV-5/220 (5CFM, DUAL VOLTAGE)

LAV-5/220/G (5CFM, DUAL VOLTAGE WITH GAUGE)

LAV-7/220 (7CFM, DUAL VOLTAGE)

LAV-7/220/G (7CFM, DUAL VOLTAGE WITH GAUGE)

LAV-10/220 (10CFM, DUAL VOLTAGE)

LAV-10/220/G (10CFM, DUAL VOLTAGE WITH GAUGE)



click here for the sell sheet download page

High Vacuum Pump Deluxe Experiment kit

This kit comes with everything you need to start teaching high vacuum in the classroom. Demonstrate water boiling at room temperature as well as what happens to a balloon at high vacuum plus much more!


Shipping Weight: 23 LBS


Kit Components

1ea. LAV-3-G Pump

1ea. Acrylic Pump Plate

1ea. 6”x11” Glass Bell Jar

1ea. 5’ High Vacuum Tubing

2ea. Hose Clamps

1ea. Quart High Vacuum Pump Oil

3ea. Balloons

1ea. Petri Dish


Catalog Numbers:

LAV-3/G-DKIT

LAV-DKIT (everything in kit without the #LAV-3/G Vacuum Pump)


click here for the sell sheet download page

Downloads for the Vacuum Oil SDS and Pump Instructions Bookl

SDS High Vacuum Pump Oil OIL-01 2018 FTC (pdf)

Download

Pump Instructions Booklet (pdf)

Download

About our Vacuum Pumps

Using the Deluxe Vacuum Kit

Check out this great video
