Pilot Diaphragm Vacuum Pumps

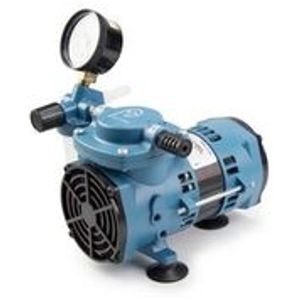

PILOT 3000 ECONOMICAL CHEMICAL-RESISTANT DIAPHRAGM VACUUM PUMP

PILOT 3000 ECONOMICAL CHEMICAL-RESISTANT DIAPHRAGM VACUUM PUMP

PILOT 3000 ECONOMICAL CHEMICAL-RESISTANT DIAPHRAGM VACUUM PUMP

The PILOT3000 Chemical Duty Vacuum pump is constructed from quality parts, manufactured in the USA and offered at an affordable price.  This Laboratory Vacuum pump is library-quiet - the noise level is only ~ 54 dB small, durable, and chemical resistant!

The PILOT3000 is nearly maintenance-free because of the PTFE coated surfaces, PTFE membrane, stainless steel valves and oil-free design.

APPLICATIONS

Vacuum filtration
Solid phase extraction
Desiccation
Microbiology
Replace water aspirator
Aspiration
Degassing
Vacuum drying
Fume suction

The PILOT3000 is equipped with a 1/7 hp motor and provides a maximum 20 L/min (115V/60Hz) of free air displacement and 22 in-Hg of maximum vacuum. The pump features a vacuum regulator with gauge to adjust and monitor vacuum level. The inlet catch-pot protects from accidental ingestion of water and particulates.

The PILOT3000 is resistant to bleach and acetone vapors allowing it to be used with cell culture decontamination protocols.

Features
• Made in the USA
• PTFE contact surfaces
• Bleach safe for cell culture bio decontamination protocols
• Vacuum to 22" Hg
• Flow of 20 lpm
• Vacuum regulator
• Exhaust muffler
• Compact, portable
• Quiet
• 1 year warranty
• Diaphragm membrane rated for 15,000 hours use
• 115V, 60Hz
• Wt. 8.6 lbs
• 6.8" L x 7.3" W x 8.3" H
• UL recognized

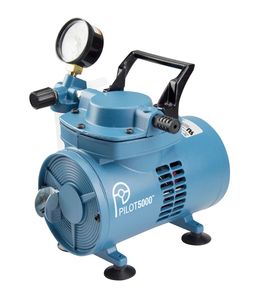

PILOT 5000 ECONOMICAL CHEMICAL RESISTANT DIAPHRAGM VACUUM PUMP

PILOT 3000 ECONOMICAL CHEMICAL-RESISTANT DIAPHRAGM VACUUM PUMP

PILOT 3000 ECONOMICAL CHEMICAL-RESISTANT DIAPHRAGM VACUUM PUMP

Model PILOT5000 and PILOT5000C-02 diaphragm vacuum pump are durable and chemical resistant. All contact surfaces are PTFE coated. They come with a liquid inlet trap and vacuum regulator making it a perfect choice for vacuum filtration, desiccation, and other mid-range vacuum applications. The TLD5000 and TLD5000C-02 are also bleach resistant, allowing them to be used with cell culture decontamination protocols.

The PILOT5000 has free air displacement at 115V / 60 Hz (50 Hz) and a maximum vacuum of 24"Hg (200 mbar), while the PILOT5000C-02 has free Air Displacement at 230V / 60 Hz (50 Hz). They are recommended for operations utilizing organic/aqueous solvents and/or light acid/base solutions.
The pump can also be used to pressurize up to 18 PSIG and comes with 115V line cord, plug, and convenient power switch.

The PILOT5000 and PILOT5000C-02 are resistant to bleach and acetone vapors allowing it to be used with cell culture decontamination protocols.
APPLICATIONS

Vacuum filtration
Solid phase extraction
Desiccation
Microbiology
Replace water aspirator
Aspiration
Degassing
Vacuum drying
Fume suction

Features
• Made in the USA
• PTFE contact surfaces
• Bleach safe for cell culture bio decontamination protocols
• Vacuum to 24" Hg
• Flow of 37 lpm
• Liquid inlet trap with ball check valve
• Vacuum regulator
• Exhaust muffler
• Compact, portable
• Quiet
• 1 year warranty
• Diaphragm membrane rated for 15,000 hours use
• 115V, 60Hz 1Ph
• Wt. 10.2 lbs
• 8.8" L x 5.0" W x 8.8" H

​PRESSURE REGULATOR KIT ASSEMBLY

Pilot Pump Sell Sheets are available for Download Here:

Pilot Pump Sell Sheets are available for Download Here:

Regulator Kit Includes: Dial Pressure gauge, Hand Knob Control, 1/4" O.D. Hose barb, 1/8" NPT Exhaust Adapter, Built in Silencer. Compatible with PILOT3000 and PILOT5000 Chemical Resistant Diaphragm Vacuum Pumps.

Pilot Pump Sell Sheets are available for Download Here:

Pilot Pump Sell Sheets are available for Download Here:

Pilot Pump Sell Sheets are available for Download Here:

Click here for more information
